Lockhart Garage ADU

Lockhart Garage ADU

$1,019.00Price

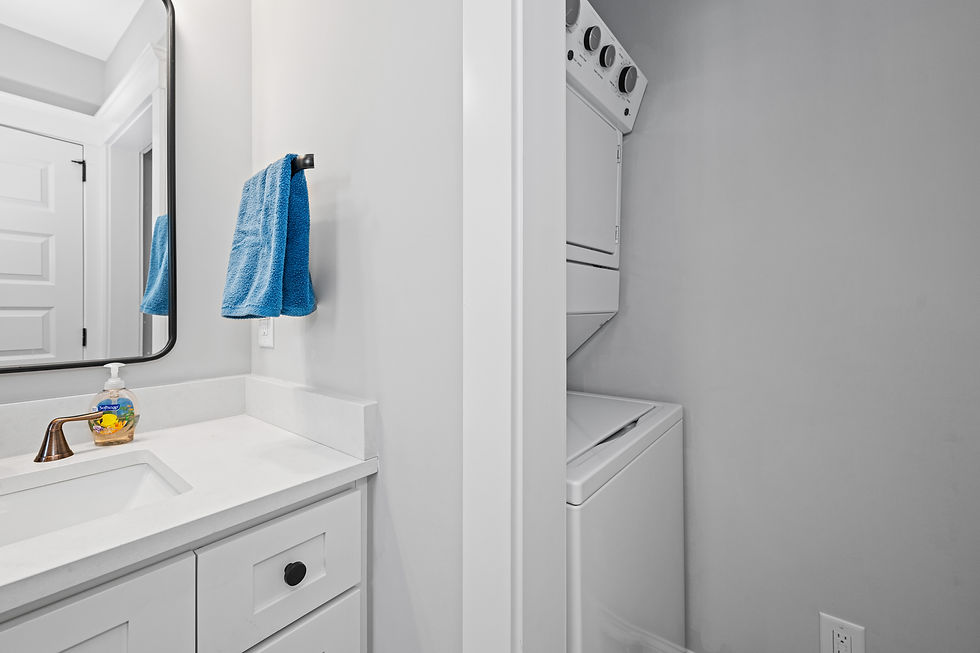

Discover the Lockhart Garage, a meticulously crafted 2-story, 1-car garage with a 450 sq. ft. studio accessory dwelling unit/bonus room on the second floor. Our design includes a full bathroom, laundry, and kitchenette, ensuring all the comforts of modern living. Additionally, a convenient dog wash station in the garage adds a practical touch for pet owners. With Pfahl Architects' unwavering commitment to innovative and functional designs, this space is perfect for guests, home offices, or creative retreats. Embrace versatility and elegance with the Lockhart Garage, a testament to our expertise in creating tailored solutions for every lifestyle.

  • Important Information

    Please note the following important details:

    • Single Use License: Your purchase entitles you to a one-time use of the plans. Reproduction or distribution of these plans is strictly prohibited.

    • Copyright: All work is copyrighted by Pfahl Architects. Unauthorized use, reproduction, or modification of the plans is a violation of copyright law.

    • Modifications: If you require any changes to the plans, we offer customization services at a rate of $150 per hour. Please contact us to discuss your specific needs and to obtain an estimate for the modifications.

    • Locality Note: Please be aware that in certain areas of the country, home plans may need to be engineered by a structural engineer licensed in your area to comply with specific building codes set by City and State municipalities. It is the responsibility of the purchaser to ensure compliance with all local building regulations.

    We are committed to providing you with high-quality plans and exceptional service. If you have any questions or need assistance, please don't hesitate to reach out.

  • Included with your Purchase

    When you purchase our home plans, you will receive the PDF plans via email within 3-5 business days.

    The drawing package includes the following components:

    • Specifications for Building Materials: Detailed descriptions of all the materials to be used in the construction.
    • Plans: Comprehensive floor plans showing the layout of each level of the home.
    • Elevations: Exterior views of the home from all sides, illustrating the design and appearance.
    • Sections and Details as Required: Cross-sectional views and detailed drawings providing insight into specific construction aspects and intricate details.
    • Lighting Plans: Plans indicating the placement and types of lighting fixtures throughout the home.

    This complete package ensures you have all the necessary information to build your home accurately and efficiently.

    Additionally, you will also receive a link to download a promotional information packet immediately after purchase, which includes a copy of the plans and elevations. Please note the following important details:

    - Ensure that the email address you provide during the purchase process is correct to avoid any delays.

    - Check your spam/junk folder if you do not see the email in your inbox within the specified timeframe.

    - The link for the information packet will be available instantly upon completion of your purchase.
